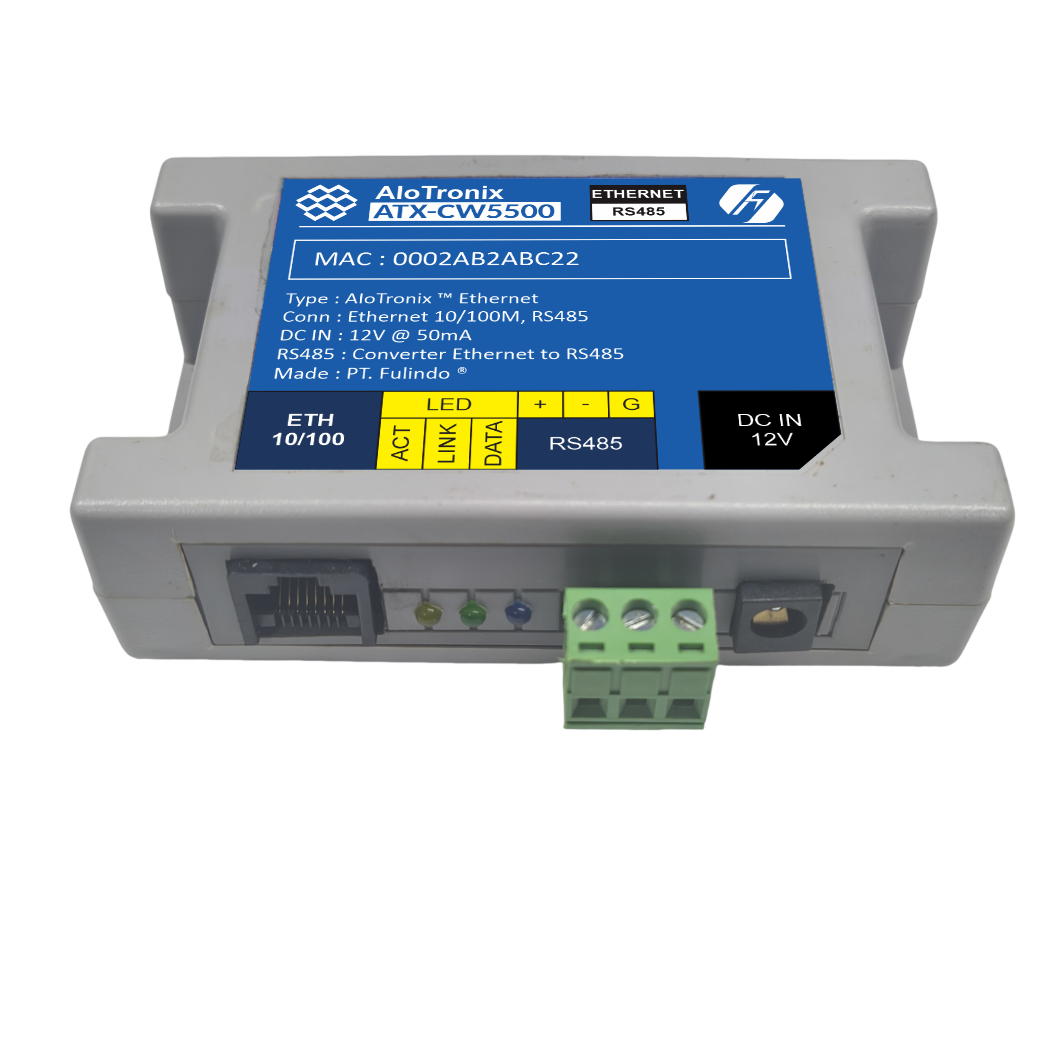

AIoTronix ATX-CW5500 Serial RS485 Converter to Ethernet

PRICE: Call

Serial Converter RS485 to Ethernet
Perangkat ini memungkinkan Anda mengakses perangkat serial (RS485) melalui jaringan lokal (LAN) atau internet. Ini menciptakan Virtual COM Port di PC yang terhubung ke perangkat fisik di lokasi jauh, sering digunakan untuk remote monitoring industri, PLC, atau SCADA system.

Fitur

• Baud Rate can be configured to any standard value from 2Kbps to 1.152Mbps
• 10/100 Mbps Ethernet interface
• Support TCP server, TCP client and UDP operating modes
• Flexible data packaging condition in serial interface
• Smart Ethernet cable detection and keep alive features
• As DHCP client to automatically acquire IP address
• As DNS client to lookup domain name
• Support Modbus RTU/ASCII to Modbus TCP/UDP
• Support Modbus over TCP/UDP
• Support user password authorization for security
• Support serial AT command configuration method
• Built-in web server for browser and remote configuration
• Provide a user-friendly configuration tool program
• Support local and remote firmware upgrade

Spesifikasi
Model : ATX-W5500
Power Input : 12VDC
Interface : Terminal block screw

Serial : RS485
Pin : A(+), B(-) Build in max 5volt
Ethernet : 10/100 Mbps
Eth Connector : RJ45
Indicator LED : 1x Data, 1x Link, 1x Act
Operation Temperature : -40 ~ 85℃
Network Protocol : TCP,UDP
Work Mode : Mixed,Server,Client
Dimension : L100 x W71 x H30 mm
Casing : Plastic

**harga tidak mengikat, sewaktu-waktu dapat berubah tanpa pemberitahuan terlebih dahulu
