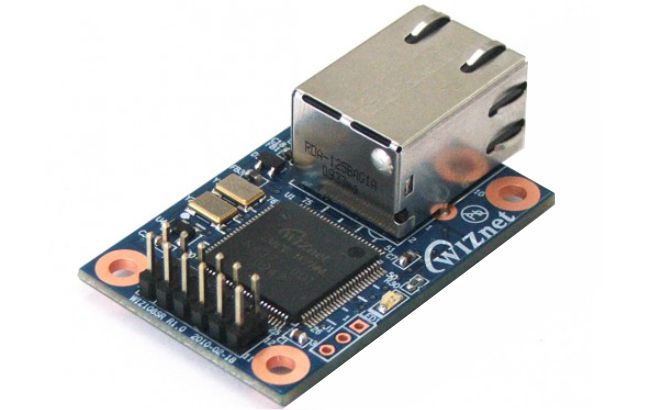

WIZ 107 SR
WIZ 107 SR
PRICE: Call
WIZ107SR is the compact sized serial to Ethernet module using W7100A, WIZnet iMCU, 8051. WIZ107SR is the protocol converter that transmits the data sent by serial equipment as TCP/IP data type, and converts back the TCP/IP data received through the network into serial data to transmit back to a serial equipment.
It complies with industrial temperature standard and supports the serial interface of RS-232.
Features
- Serial to Ethernet Module based on W7100A
- Pin-header type & RJ-45 mounted module
- Serial signals : TXD, RXD, RTS, CTS, GND, (RS-232 transceiver optionally built-in)
- Support the configuration method of AT command & Configuration tool program
- Support password function for the security
- 10/100Mbps Ethernet & Max.230kbps serial speed
- Support WIZ VSP (Virtual Serial Port) program
Hardware Specification
- Pin Header Connector Type : 2.54mm Pitch (6×2)
- Dimension (mm) : 48(L) x 30 (W) x 18 (H)
- Input Voltage : 3.3V
- Max. Power Consumption : 250mA
- Operation Temperature : -40 ~ 85℃
- RoHS, SVHC Compliant
**harga tidak mengikat, sewaktu-waktu dapat berubah tanpa pemberitahuan terlebih dahulu
